Deck Enclosures for Trailers

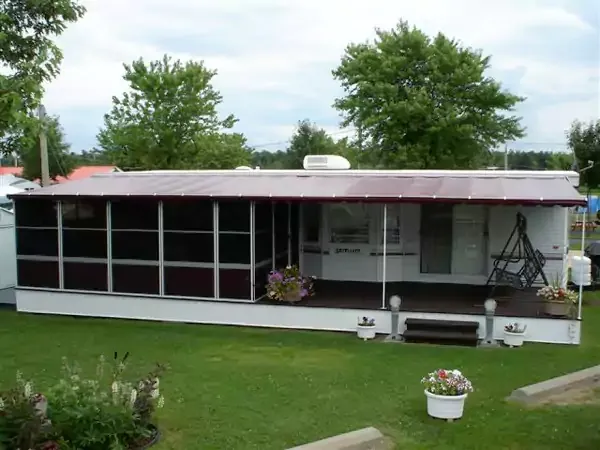

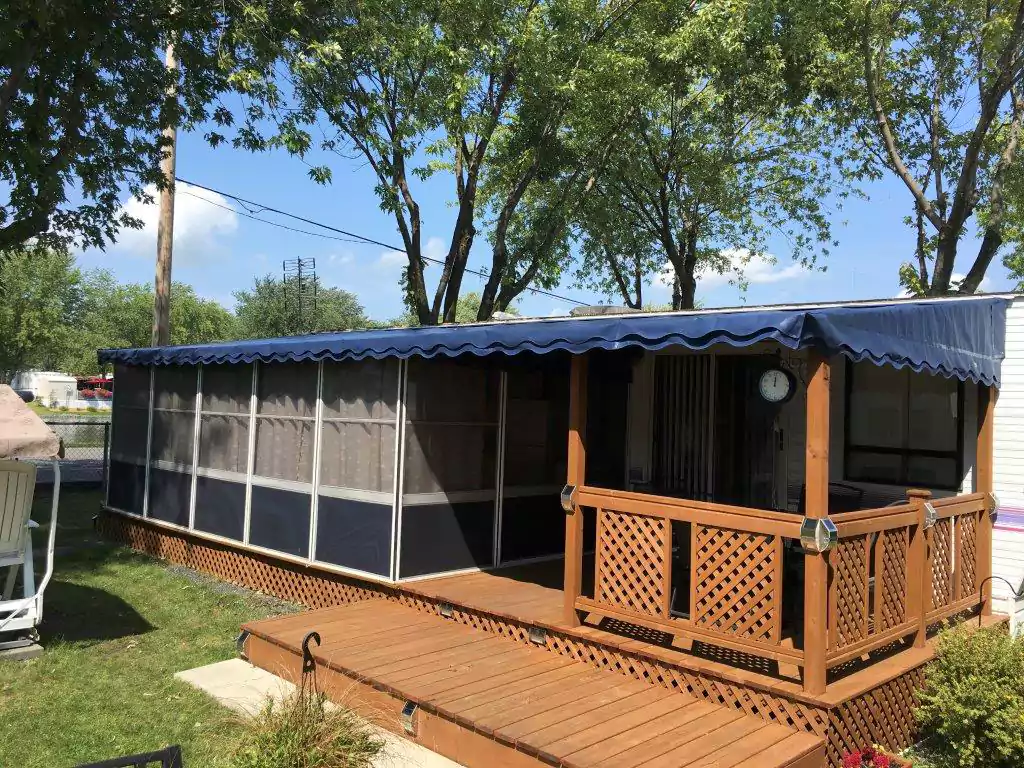

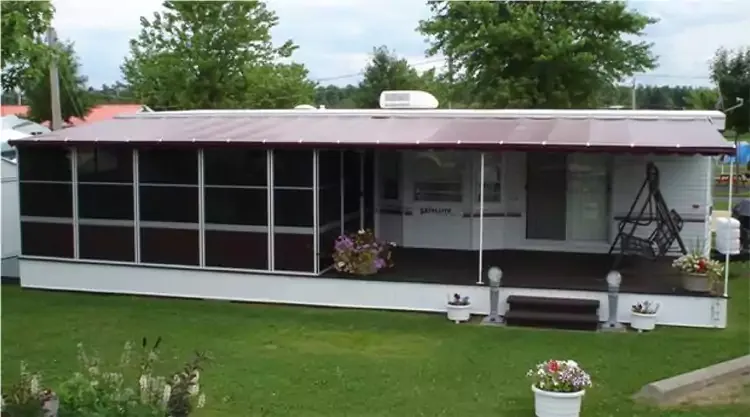

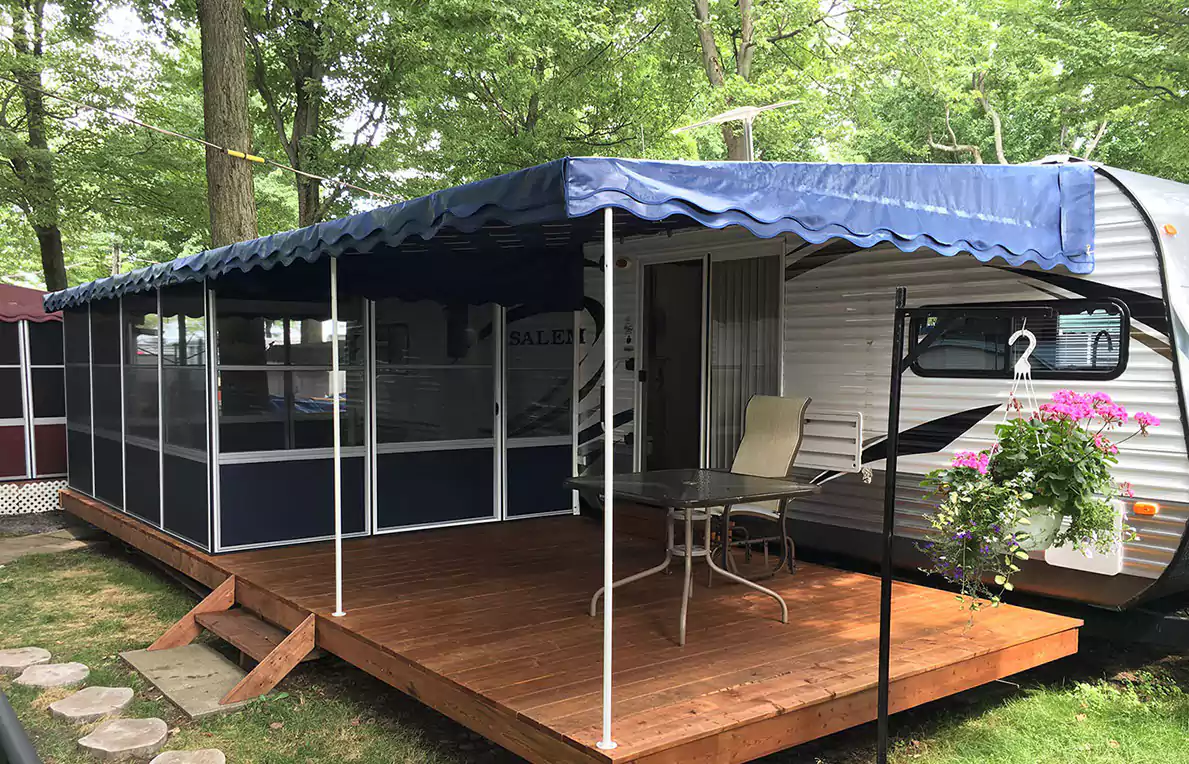

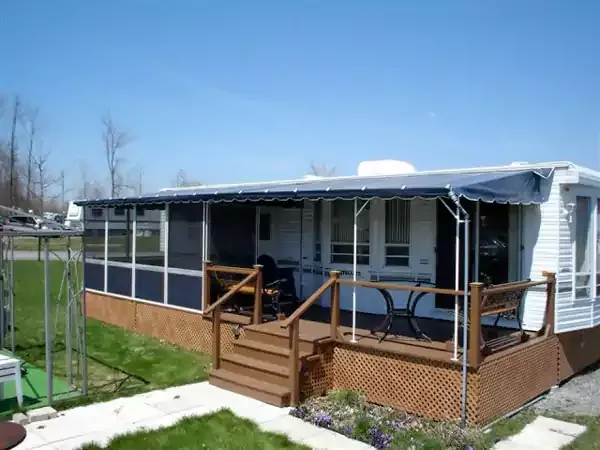

Screen Room + Optional Side Awning

The deck enclosure system for trailers can be designed with an optional side awning to extend the amount of outdoor space on either side.

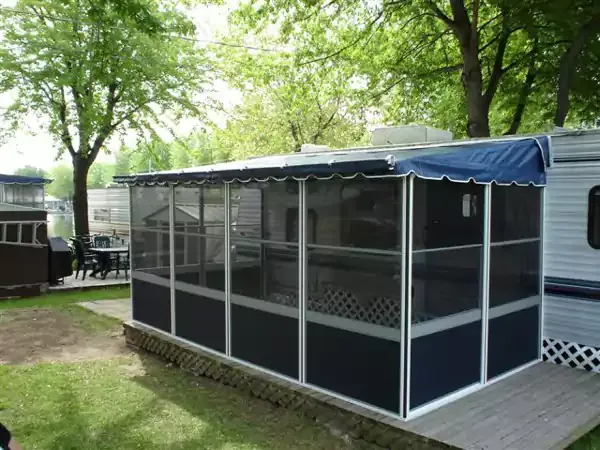

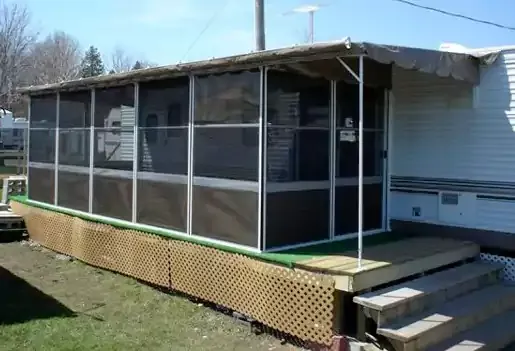

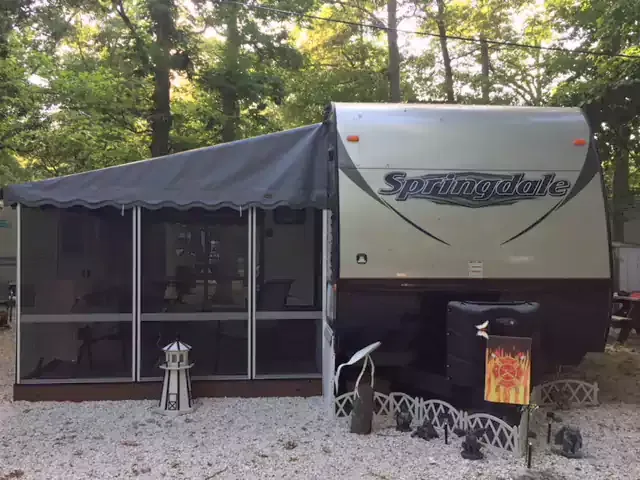

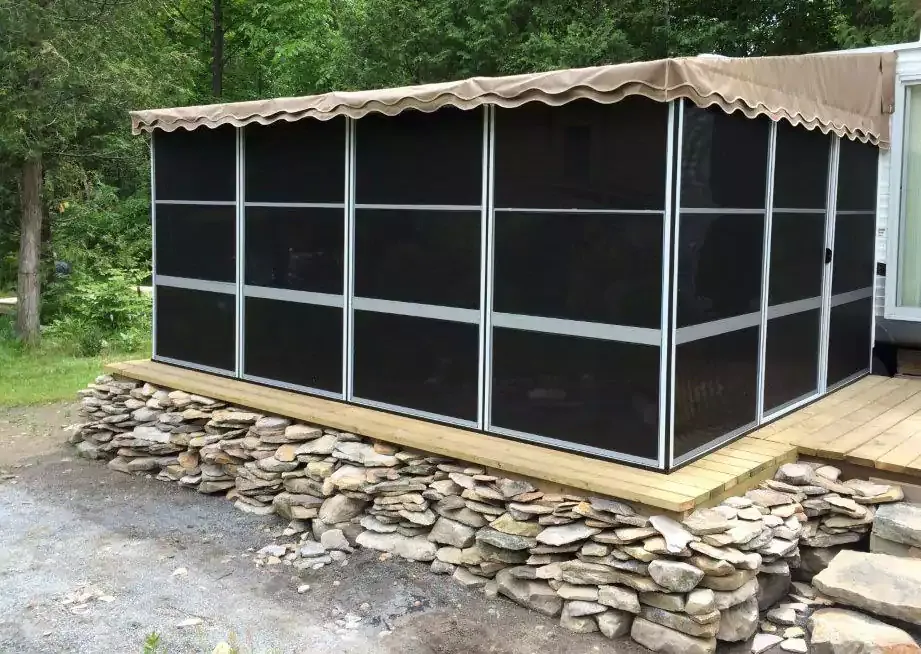

Screen Room - No Side Awning

Design your screen room with our without vinyl windows or even add an open canopy.

Frame

Frame is 1-1/8" wide x 3/4" extruded aluminum with baked on enamel finish - in white or black. The frame is an extruded aluminum construction. The aluminum is 1/8" thick and the frame measures 1-1/8" x 3/4"

PVC rails

The PVC rails that hold the screen walls to your deck or patio. Take note of the pressure pins that hold the privacy panels in the screen frame - flush with the inside face.

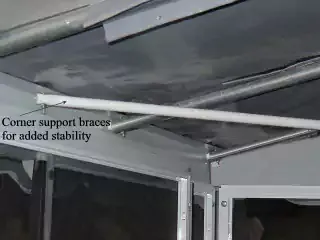

Roof tightening system

Built into the end of each galvanized steel roof rafter within the 5 1/2" overhang. The "nut & bolt" type operation allows for a simple finger operation and does not require a wrench or pliers to operate.

Additionally, the extruded aluminum bolt down brackets hold the front header rail on securely along the full length of the unit.

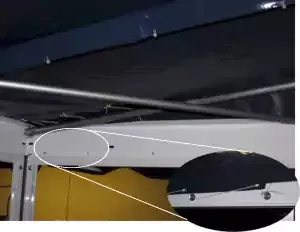

Roof & Gable

Both the roof and the gable sides of the roof are securely fastened to the side header rail by way of a grommet and lace up system. Easy to remove and easy to re-do!.

Sliding Door Rollers

The Patio Plus rooms us top mounted rollers. This design allows for large smoothly operating nylon rollers in a die cast setting held inside a PVC rail. Long lasting quality in a smooth sliding door system

Deck Attachment

The room MUST be screwed to a deck or patio. PVC rails are supplied to secure the extruded aluminum frame to the deck or patio. The aluminum extrusion is secured in place with self tapping metal screws. The PVC rail is then secured down to the deck or patio in a traditional manner.

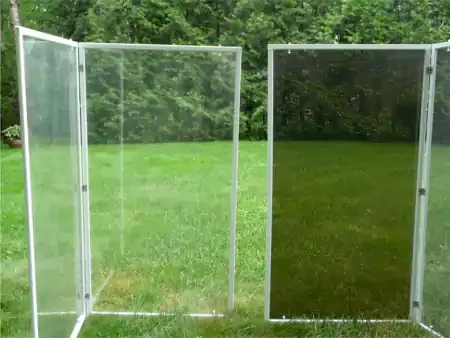

Optional Mylar Windows and Panels

Double Hinged mylar window panels. 2/3 size for top panel. Any color vinyl, clear or smoked Mylar

Single windbreaker panels are 1/3 size for bottom panel in clear or smoked Mylar. You can also select vinyl for the bottom 1/3 section to match the roof and finish off the look for your space.

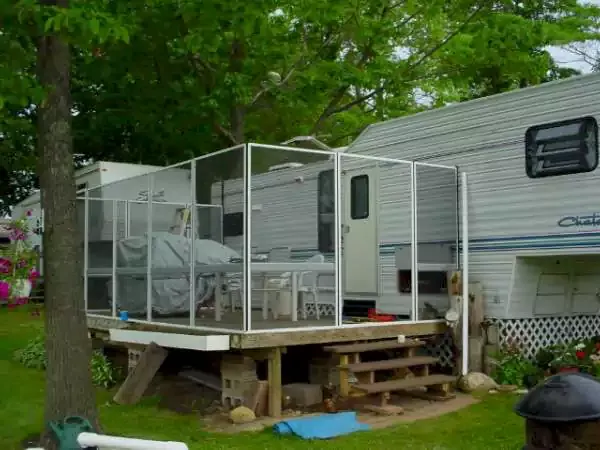

Prepped For Winter

Though not always recommended (the unit is DESIGNED to be taken down for the winter) you could leave the skeleton up for the winter. There is a supplement support kit available from the manufacturer for this purpose (part #: 760-900). That said, common sense observes that this may leave the unit open to damage from falling snow & ice from trees, or the roof line.
