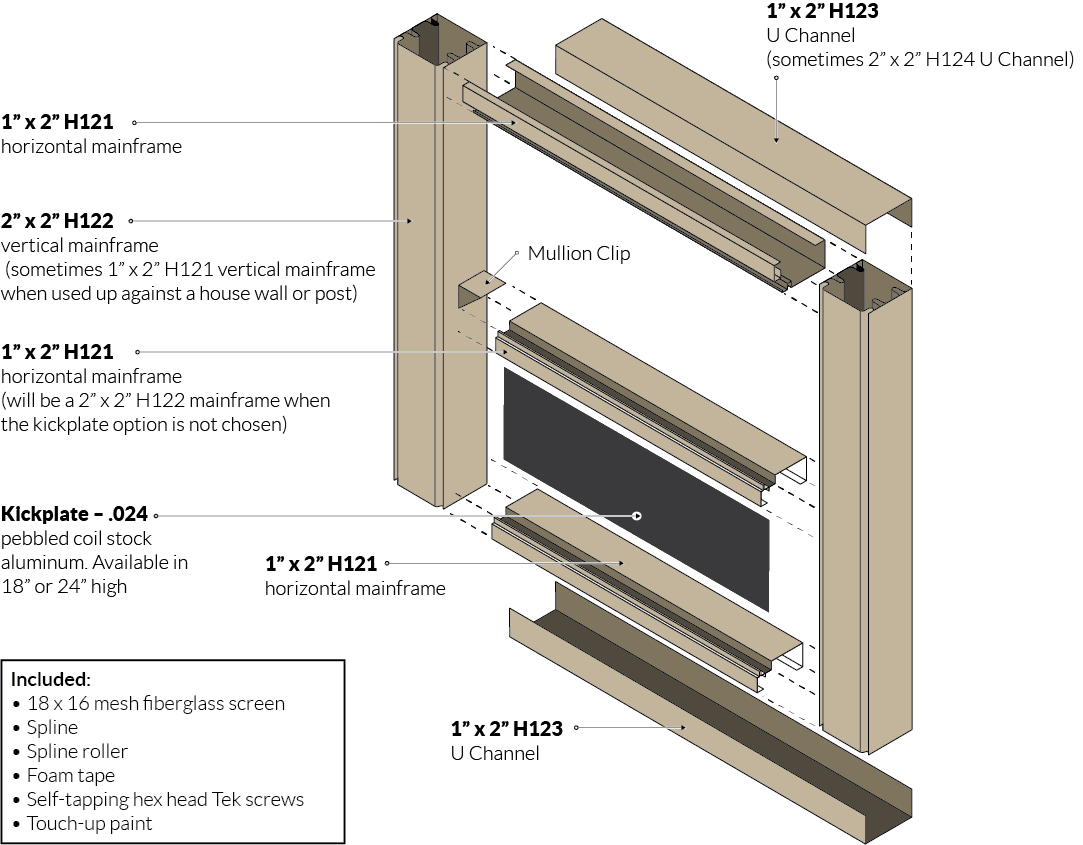

2x2 Aluminum Screen Frame

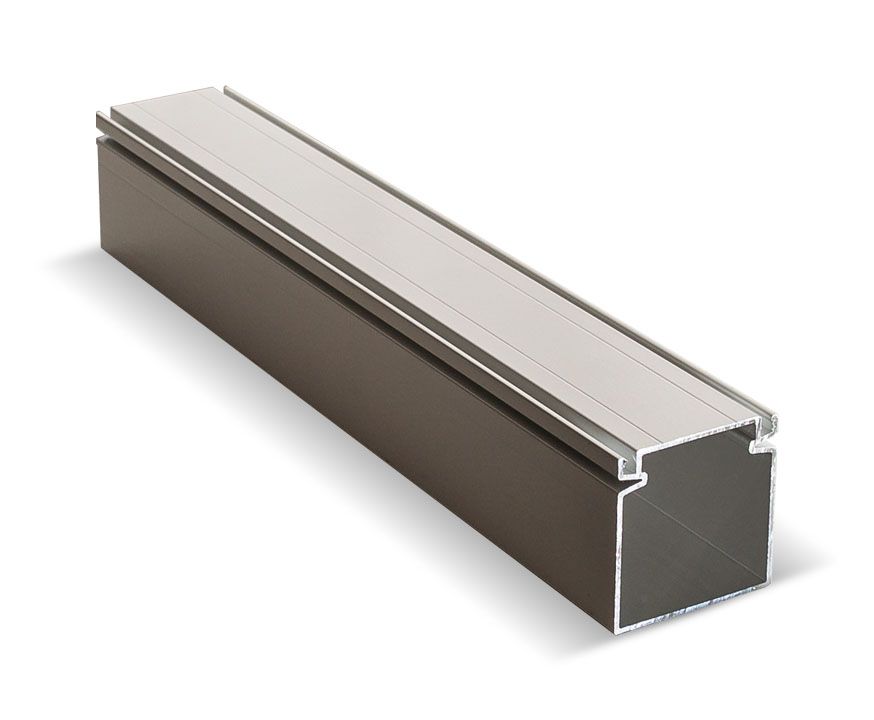

The 2" x 2" frame system is by far the most commonly used screen enclosure kit due to its quality and value mix. The vertical 2x2 posts of the screen wall system supports the roof structure and is capable of loads up to 40psf with openings less than 40". These posts also have a spline groove integrated that is used to directly screen in the room and minimize visual obstructions. There is no engineering available the 2x2 system, so not recommended when going for building permit.

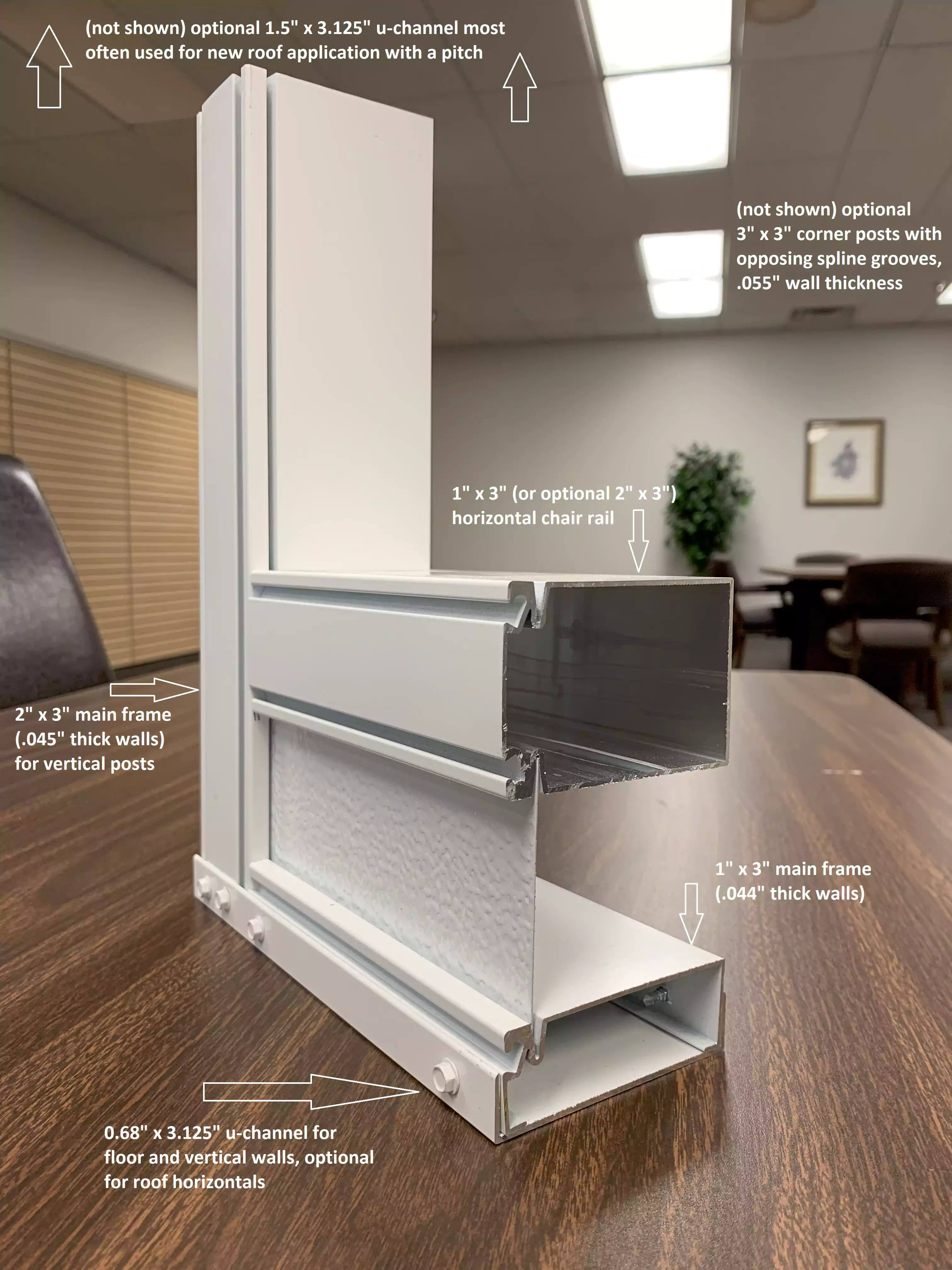

2x3 Aluminum Screen Frame

Increasing the size of the frame to the stronger 2" x 3" posts allows you to increase the size of the openings while still maintaining up to a 40psf snow load rating. They are similar in style and function to the 2x2 system, but can support more roof load due to the larger construction. These systems have engineering available with stamp for most US stats, so the preferred choice when a building permit is needed. Additional cost for engineering plans is $80.00 and can be purchased at Engineering Express.

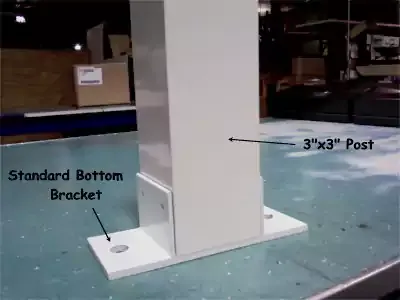

Beam and Posts Alternative

Where openings larger than 60" are desired and/or the local snow load exceeds 40psf, we can design your room with larger 3x3 or 4x4 posts and beams and then screen within each opening. This option is essentially an insulated patio cover or aluminum patio cover paired with a porch screen kit.

Skylight

Patio Covers and Room Enclosures can now be enhanced with our new IllumaView™ natural light system. Our patented IllumaView™ natural light system is a translucent panel that easily attaches to our insulated LRP’s utilizing the same patented locking mechanism, which makes it simple and easy to install with no additional training or assembly required.

Specifications:

• Pre-assembled with normal manufacturing lead-times
• Available lengths: 8’-0 to 24’-0
• White edge extrusions only
• Poly-carbonate is translucent white opaque
• Fully engineered to meet IBC, IRC and Florida Building Codes
• The polycarbonate is warranted for 10 years against yellowing, aging, and damage from hailstones

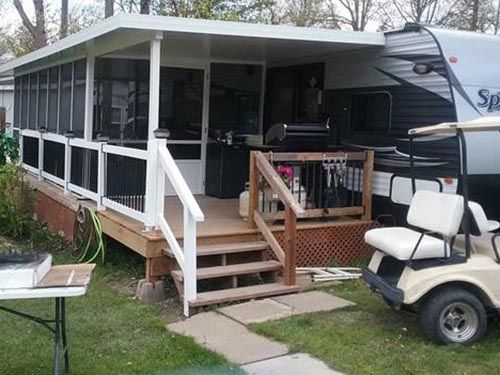

Canopy Only Section

Extend the roof beyond the screen room on either side to create a covered section that isn't enclosed by the screen room. Great for protecting your BBQ space from the sun or rain! Increase the sophistication by adding a retractable screen to one of the openings using our retractable insect screen. Get a custom quote today!

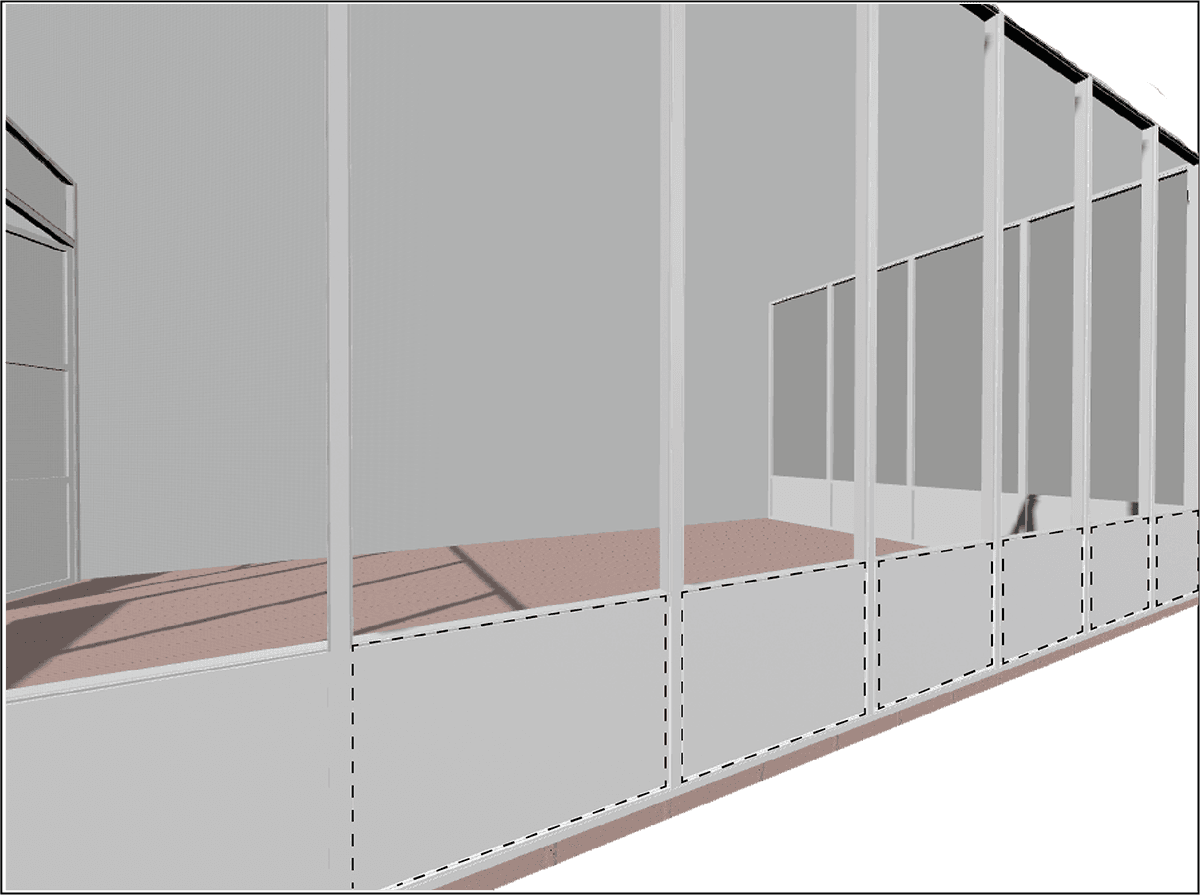

Kick Plate

Roll formed aluminum kickplates offer protection on the lower portion of the screen walls that are subject to more damage from impact or animals. Choose to have no kick-plate, 18" high kick-plate or 24" high kick-plate.

Chair Rail / Horizontal Mullions

For rooms without a kickplate, a horizontal 2x2 chair rail is recommended to be installed between verticals if any openings are larger than 54". Horizontals can be placed at any height you wish, but we recommend somewhere below the midpoint to create a clear line of sight for when you are seated in the room. Add more horizontals if you prefer an alternative visual appearance.

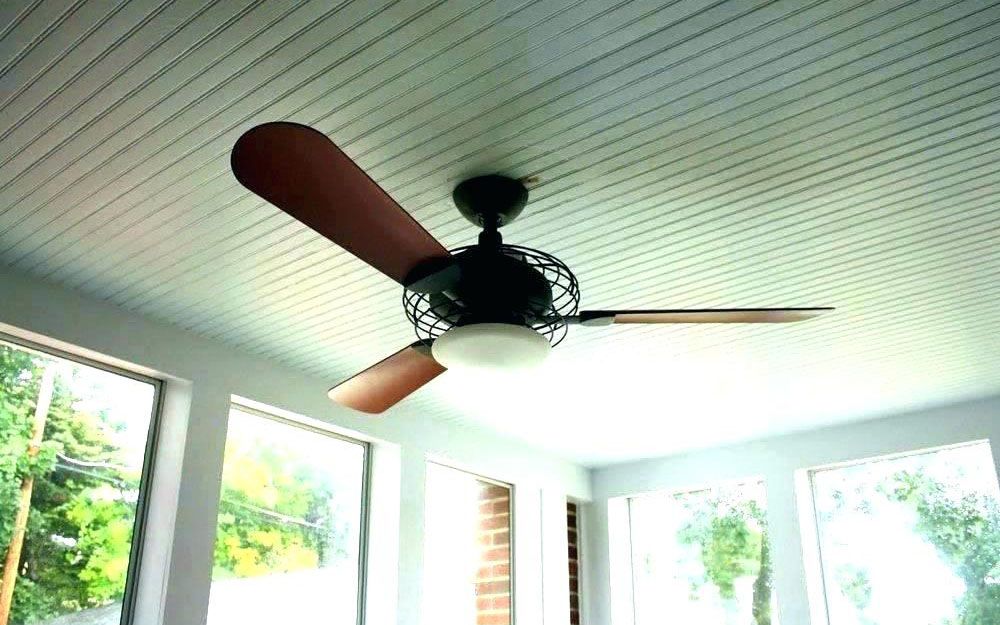

Fan Beam Panel

The fan beam both acts as a hidden conduit to hide wiring and also adds additional structural integrity to hold lamps or fans up to 50lbs. A nice clean finish that your friends will think was installed by a pro!

Colors

Aluminum screen wall extrusions come is several colors that can be selected individually to create your own unique space. Choose between White, Sandstone, Wheat and Dark Bronze for either the 2x2 or 2x3 system. The 2x2 system also has the option for Black for a more contemporary look. Your room can be one single color or accent with a combination of light and dark colors. The choice is yours!

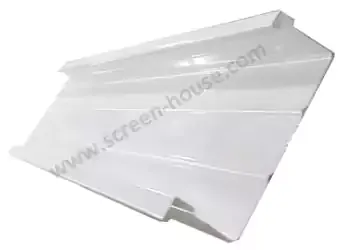

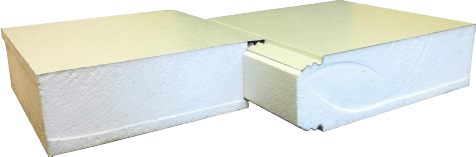

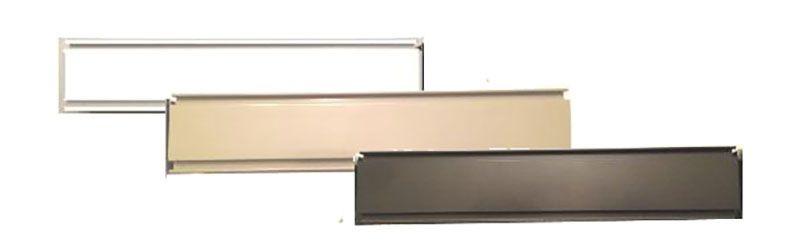

Matching colors are available for the roof extrusions as well, though not all colors are available for the roof panels themselves. For a list of color options for the roof components, please refer to the insulated panel detail page, flat pan detail page or the beam and post detail page.
